ENGINE   104.941 /943 /944 /991 /994 as of 1.8.96     Start recognition via circuit 50 ENGINE   104.995     with CODE (494a) USA version     with CODE (807) Model year 1997     with CODE (808) Model year 1998 ENGINE   111.921 /942 as of 1.9.98,     111.946 as of 1.6.98,     111.944 /975 as of 1.8.96,     111.943 /947 /951 /952 /955 /956 /957 /958 /973 /982 /983     Start recognition via circuit 50 ENGINE   111.945     in MODEL  202.020 /080 as of 1.9.98, ENGINE   111.974     with CODE (494a) USA version     with CODE (807) Model year 1997     with CODE (808) Model year 1998     Start recognition via circuit 50 ENGINE   112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /, 949 /953 /954 /955 /970 /972 /973 /50 /975     Start recognition via circuit 50 ENGINE   113.940 941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969     Start recognition via circuit 50

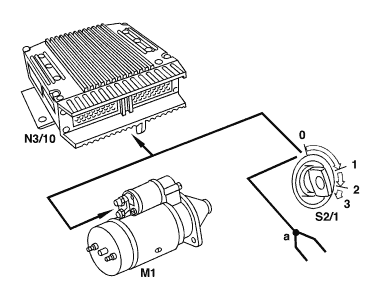

Illustrates vehicle without EIS and without starter control M1 Starter N3/10 ME-SFI control unit S2/1 Ignition/starter switch A Voltage supply, circuit 30
		P07.61-0356-11

Function The engine control unit is informed via the introduced starting procedure through "terminal 50". This is necessary in order, for example, to trigger the start quantity control, the starter control, the post-start enrichment and ignition timing when starting. Vehicles with EIS and CAN When the electronic ignition key is turned into the start position, the electronic ignition switch control unit (N73) supplies the CAN message "circuit 50".

Vehicles with EIS without CAN When the electronic ignition key is turned into the start position, the electronic ignition switch (N73) control unit supplies the start signal circuit 50 to the engine control unit from the output pin B9. The output is short-circuit proof and can accept a maximum load of 250 mA. Vehicles with ignition start switch Circuit 50 of ignition/start switch is switched to the engine control unit.
