GF07.61-P-0001-02AU

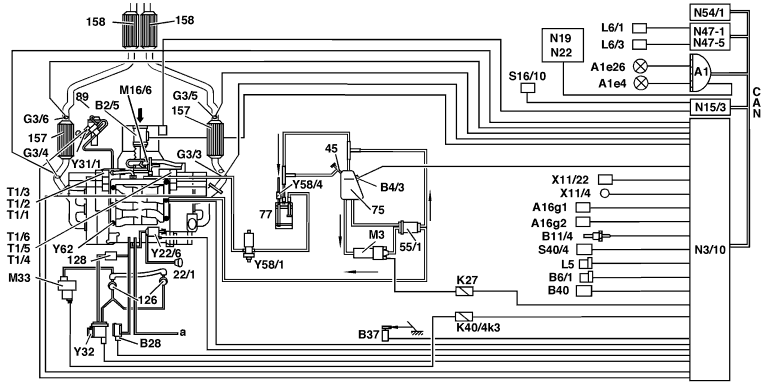

Motor electronics (ME-SFI) fuel injection and ignition system function diagram

Engine 112

P07.61-0514-09

Shown on model 210 22/1 Intake manifold changeover diaphragm unit 45 Fuel filler neck (with connection for Onboard Refueling Vapor Recovery ORVR) 55/1 Fuel filter with integrated fuel pressure regulator 75 Fuel tank 77 Activated charcoal canister 89 Exhaust gas recirculation valve 126 Secondary air injection shutoff valve (combination valve: check valve integrated) 128 Check valve (vacuum) 157 Firewall catalytic converter 158 Catalytic converter a Other components A1 Instrument cluster A1e4 Fuel reserve warning lamp A1e26 CHECK ENGINE warning lamp A16g1 Knock sensor 1 (right side of engine) A16g2 Knock sensor 2 (left side of engine)

B2/5 Hot film mass air flow sensor (intake air temperature sensor integrated) B4/3 Fuel tank pressure sensor B6/1 Camshaft Hall sensor B11/4 Coolant temperture sensor B28 Pressure sensor B37 Pedal value sensor B40 Oil sensor (oil level/temperature/ quality) G3/3 Left O2 sensor before TWC G3/4 Right O2 sensor before TWC G3/5 Left O2 sensor after TWC G3/6 Right O2 sensor after TWC K17 Secondary air injection relay, model 129 K27 Fuel pump relay K40/4k3 Secondary air injection relay (integrated in fuse and relay module) L5 Crankshaft position sensor L6/1 Left front vehicle speed sensor L6/3 Left rear vehicle speed sensor M3 Fuel pump M16/6 Throttle valve actuator M33 Electric air pump N3/10 ME-SFI control module N15/3 ETC (electronic transmission control) control module

N19 Air conditioning pushbutton control unit N22 Automatic air conditioning (Auto A/C) pushbutton control module N47-1 ASR/SPS control module N47-5 ESP/SPS control module N54/1 Infrared drive authorization system control module S16/10 Transmission range recognition switch S40/4 Variable cruise control (CC) switch T1/1 - Ignition coils cylinders 1 - 6 T1/6 (twin ignition coils) X11/4 Data link connector, 38-pin X11/22 Data link connector OBD II Y22/6 Variable intake manifold switchover valve Y31/1 EGR vacuum transducer Y32 Air pump switchover valve Y58/1 Purge control valve Y58/4 Activated charcoal canister shutoff valve Y62 Fuel injectors CAN Data bus (Controller Area Network)
