GF07.61-P-0001-02KU

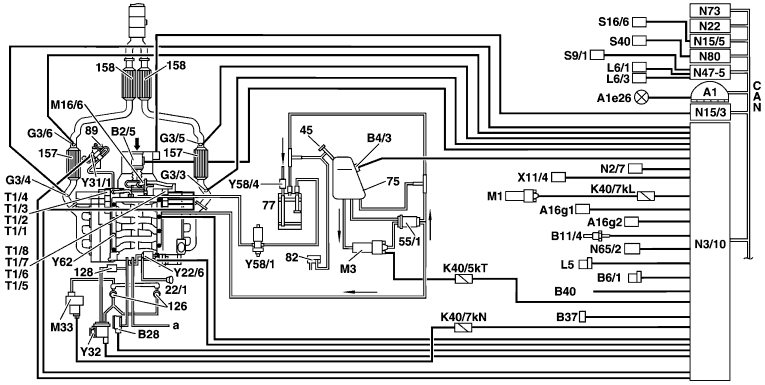

Motor electronics (ME-SFI) fuel injection and ignition system function diagram

Engine 112, 113 in model 215, 220

P07.61-2148-09

Shown on engine 113 22/1 Variable intake manifold switchover diaphragm unit 45 Filler neck with connection for on-board refueling vapor recovery (ORVR) 55/1 Fuel filter with integrated fuel pressure regulator 75 Fuel tank 77 Activated charcoal canister 82 Pressure relief valve (ORVR) 89 Exhaust gas recirculation valve 126 Secondary air injection shutoff valve (combined valve: check valve integrated) 128 Check valve (vacuum) 157 Firewall catalytic converter 158 Catalytic converter a Other consumers TO1 Instrument cluster A1e26 "CHECK ENGINE" MIL A16g1 Knock sensor 1 (right side of engine) A16g2 Knock sensor 2 (left side of engine) B2/5 Hot film MAF sensor (intake air temperature sensor integrated)

B6/1 Camshaft Hall sensor B4/3 Fuel tank pressure sensor B11/4 Coolant temperature sensor B28 Pressure sensor B37 Pedal value sensor B40 Oil sensor (oil level/temperature/quality) G3/3 Left O2 sensor upstream of TWC G3/4 Right O2 sensor upstream of TWC G3/5 Left O2 sensor downstream of TWC G3/6 Right O2 sensor downstream of TWC K40/5kT Fuel pump relay K40/7kL Starter relay K40/7kN Secondary air injection relay L5 Crankshaft position sensor L6/1 Left front wheel speed sensor L6/3 Left rear wheel speed sensor M1 Starter, circuit 50 M3 Fuel pump (FP) M16/6 Throttle valve actuator M33 AIR pump N2/7 Restraint systems control module N3/10 ME-SFI [ME] control module

N15/3 ETC (electronic transmission control) control module N15/5 Electronic selector lever module control module cc Automatic air conditioning (AAC) pushbutton control module N47-5 ESP / SPS / BAS control module N65/2 Suction fan control module N73 DI control module N80 Steering column module S9/1 Stop lamp switch (4-pin) S16/6 Kickdown switch S40 Cruise control (CC) switch T1/1 - Ignition coils cylinders 1 - 8 T1/8 (double ignition coils) X11/4 Diagnostic data link connector Y22/6 Variable intake manifold switchover valve Y31/1 EGR [ARF] vacuum transducer Y32 Air pump switchover valve Y58/1 Purge control valve Y58/4 Activated charcoal canister shutoff valve Y62 Fuel injectors CAN databus (Controller Area Network)
