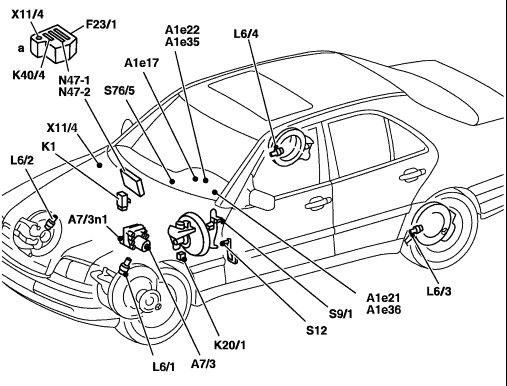

A1e17 ABS MIL
A7/3 ASR/ETS/ESP hydraulic unit
A7/3n1 Cycling module
F23/1 Control module box
K40/4 Fuse and relay module
K1 Overvoltage protection relay module
K20/1 High-pressure/return pump relay
L6/1, L6/2 Left/right front axle VSS
L6/3, L6/4 Left/right rear axle VSS
S9/1 Stop lamp switch, 4-pin
S12 Parking brake switch
X11/4 Data link connector
(DTC readout)
On ASR only
A1e21 ASR warning lamp
A1e22 ASR MIL
N47-1 ASR/SPS control module
S76/5 ASR OFF switch
On ETS only
A1e35 ETS MIL
A1e36 ETS warning lamp
N47-2 ETS/SPS control module
