GF54.35-P-0001-01A

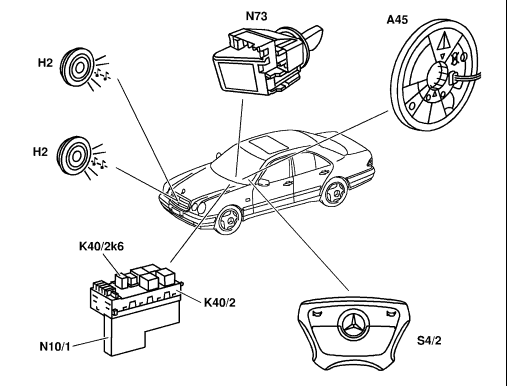

Location of components for fanfare horns

Illustrated on model 210

A45 Horn/airbag clock spring contact
H2 Fanfare horns
K40/2 Driver-side fuse and relay module
K40/2k6 Fanfare relay
N10/1 Driver-side signal acquisition
and actuation module (SAM)
N73 Electronic ignition switch (EIS)
control module
S4/2 Fanfare switch

P54.35-0217-06

Illustrated on model 210 A45 Horn/airbag clock spring contact H2 Fanfare horns K40/2 Driver-side fuse and relay module K40/2k6 Fanfare relay N10/1 Driver-side signal acquisition and actuation module (SAM) N73 Electronic ignition switch (EIS) control module S4/2 Fanfare switch
		P54.35-0217-06
