GF67.29-P-0003-01A

Rear window defroster (HHS), location of components

Models 202 as of 1.6.97, 210.081/281,
210 (except 210.081/281) as of 1.3.97
208 (except 208.4)

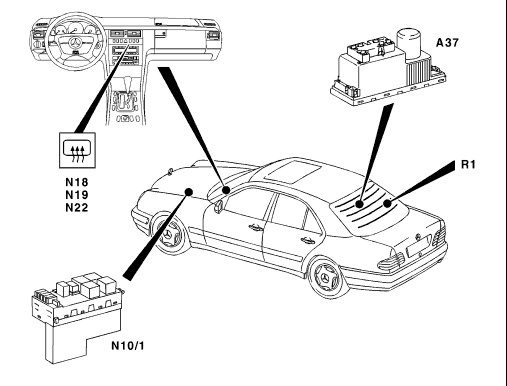

Arrangement of components

A37 Pneumatic system equipment (PSE) with combined functions
N10/1 Signal acquisition and actuation module (SAM)
N18 Heater pushbutton control module
N19 A/C pushbutton control module
cc Automatic air conditioning (AAC) pushbutton control module
R1 Rear window defroster

Illustrated on sedan MODEL 210

P67.29-0210-06

*Arrangement of components* A37 Pneumatic system equipment (PSE) with combined functions N10/1 Signal acquisition and actuation module (SAM) N18 Heater pushbutton control module N19 A/C pushbutton control module cc Automatic air conditioning (AAC) pushbutton control module R1 Rear window defroster Illustrated on sedan MODEL 210
		P67.29-0210-06
