GF72.29-P-4103-02A

Center console power window switch, function

Models 202 as of 1.6.97, 210.081/281, 210 (except 210.081/281) as of 1.3.97, 208 (except 208.4)

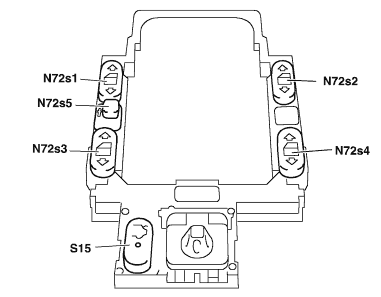

Center console power window switch N72s1 Left front power window switch N72s2 Right front power window switch N72s3 Left rear power window switch N72s4 Right rear power window switch N72s5 Rear power window safety switch Shown on MODELS 202/210
		P77.20-0371-11

Functions of the rocker switch The five mechanical positions of the rocker switch are input by the lower control panel control module (N72) . Center position neutral first lower detent manual window lowering first upper detent manual window raising second lower detent automatic window lowering second upper detent automatic window raising Provided the function prerequisites no overvoltage/undervoltage circuit 15 on or circuit 15R on are satisfied, the lower control panel control module (N72) sends a CAN message with the switch position to the relevant door control module. With continuous switch actuation, the CAN message is transmitted for a maximum of 25 sec.

With a non-normalized window , the lower control panel control module (N72) receives a corresponding CAN message. Instead of the "automatic window raising" switch position, the "manual window raising" position is transmitted. Function of the slide switch for the childproof lock (MODELS 202/210 only) The position of the switch is input by the lower control panel control module (N72). Provided the function prerequisites no overvoltage/undervoltage circuit 15 on or circuit 15R on are satisfied and the switch is in the "ON" position, the lower control panel control module (N72) transmits a CAN message with the switch position.
