MODEL   202 as of 1.6.97,     208, 210.081 /281,     210 (except 210.081 /281) as of 1.3.97

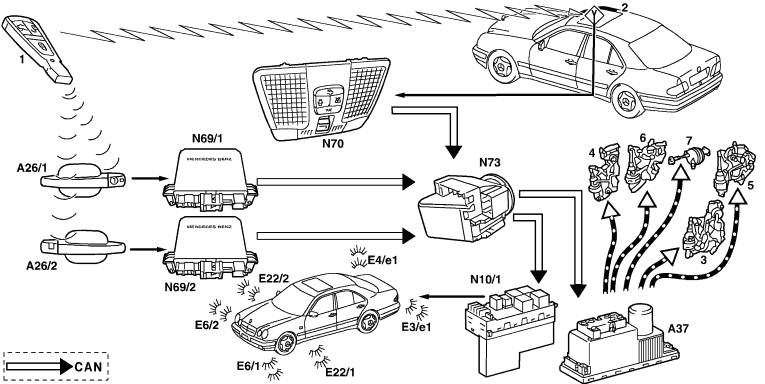

P80.20-0419-09

A26/1 Left front door IR receiver A26/2 Right front door IR receiver A37 PSE control module (combined) CAN Controller area network E22/1 Left auxiliary turn signal lamp E22/2 Right auxiliary turn signal lamp E3/e1 Turn signal lamp E4/e1 Turn signal lamp E6/1 Left turn signal lamp E6/2 Right turn signal lamp

N10/1 Driver-side signal acquisition and actuation module (SAM) N69/1 Front driver-side door control module N69/2 Front passenger-side door control module N70 Overhead control panel control module N73 Electronic ignition switch (EIS) control module 1 Remote control key

2 Antenna 3 Pneumatic actuator in driver's door 4 Pneumatic actuator in passenger door 5 Pneumatic actuator in left rear door 6 Pneumatic actuator in right rear door 7 Pneumatic actuator for tank flap Illustrated on model 210

The vehicle can be locked and unlocked with the remote control key. There are two modes for the unlocking function: "Global unlocking" and "selective unlocking". In the "global unlocking" mode all doors, the tank flap and the trunk lid or tailgate are unlocked. In the "selective unlocking" mode only the driver's door and tank flap are unlocked. The anti-theft alarm (ATA) is deactivated in both modes. The vehicle can be unlocked by pressing the "unlock" button on the remote control key. The mode can be set on the remote control key. The "selective unlocking" mode is set at the factory. Successful execution of this function is indicated by the turn

signals flashing once. If the "unlock" button on the remote control key is pressed again following "selective unlocking" the vehicle is unlocked "globally". The locking function can be started by pressing the "lock" button on the remote control key. All of the locking points are locked and the ATA is activated. Successful execution of this function is indicated by the turn signal lamps flashing three times.
