MODELS   202 as of 1.6.97

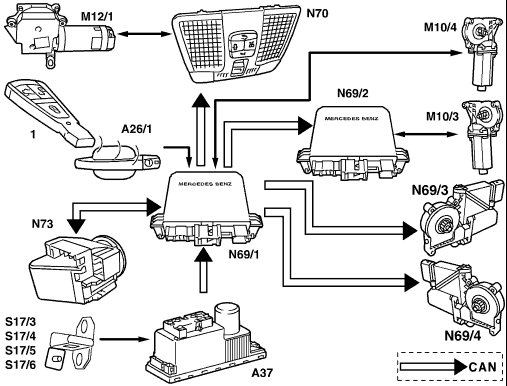

Networking 1 Transmitter key A26/1 Infrared remote control (RCL) receiver, driver's door A37 Pneumatic system equipment (PSE) CAN Controller area network M10/3 Left front power window motor M10/4 Right front power window motor) M12/1 Sliding/tilting roof N69/1 Driver front door control module N69/2 Driver front door control module N69/3 Rear driver side door control module N69/4 Door control module rear passenger side N70 Overhead control panel control module N73 Electronic ignition switch (EIS) control module S17/3 Left front door contact switch S17/4 Right front door contact switch S17/5 Left rear door switch S17/6 Right rear door contact switch Shown on model 210, driver side
		P82.40-0239-06

Function prerequisites: no overvoltage/undervoltage circuit 15_off and circuit 15R_off all doors closed. Function Actuation of the "Unlock vehicle" button on the transmitter key triggers the corresponding central locking function. If the button is pressed for longer than 5 seconds, then a convenience locking signal is sent by infrared (IR) by the transmitter key . The signal is picked up by

one of the IR receivers. If the function prerequisites are fulfilled, then the corresponding door control module sends the convenience locking command to the CAN. The command is sent as long as the signal is received by the transmitter key. The overhead control panel control module (N70) then executes the tilting/sliding roof convenience closing function. The door control modules execute the power window convenience closing function. When the "Unlock vehicle" button is pressed, the corresponding convenience opening functions are executed.

	Convenience opening of power windows		GF72.29-P-3004A
	Closing power windows with convenience feature		GF72.29-P-3005A
	Opening sliding/pop-up roof with convenience feature		GF77.20-P-2000A
	Convenience closing of tilting/sliding roof		GF77.20-P-2001A
	Transmitter key		GF80.57-P-4101A
