MODELS   202 as of 1.6.97,     208, 210.081 /281 (except 208.4),     210 (except 210.081 /281) as of 1.3.97     with CODE (491) U.S. version     with CODE (498) Japanese version

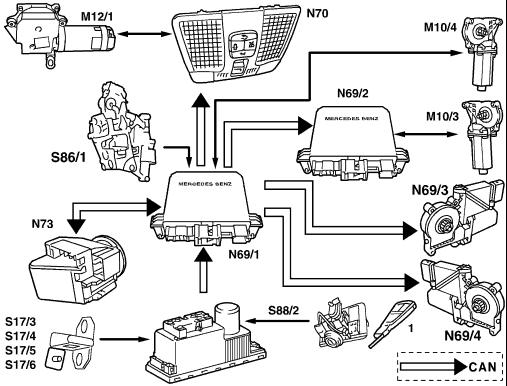

Networking A37 Pneumatic system equipment (PSE) CAN Controller area network M10/3 Left front power window motor M10/4 Right front power window motor) M12/1 Sliding/tilting roof N69/1 Driver front door control module N69/2 Driver front door control module N69/3 Rear driver side door control module N69/4 Door control module rear passenger side N70 Overhead control panel control module N73 Electronic ignition switch (EIS) control module S17/3 Left front door contact switch S17/4 Right front door contact switch S17/5 Left rear door switch S17/6 Right rear door contact switch S86/1 Left front lock switch S88/2 Trunk lid lock switch 1 Transmitter key Illustrated on model 210
		P82.40-0238-06

Function prerequisites: no overvoltage/undervoltage circuit 15_off and circuit 15R_off all doors closed. Convenience closing/opening on driver door with lock switch, function When the left front lock switch (convenience) (S86/1) is actuated, the central locking function is triggered. Moreover, if the lock switch is pressed for longer than 5 seconds, the driver front door control module (N69/1) sends the convenience locking command to the CAN. The command is sent as long as the lock switch is operated. The control module

for the overhead control panel (N70) then executes the tilting/sliding roof convenience closing function. The door control modules execute the power window convenience closing function. Convenience closing/opening with lock switch, trunk lid In this case, the trunk lid lock switch (convenience) (S88/2) is actuated and the CAN command sent by the pneumatic system equipment (PSE), combination functions (A37). When the "Unlock vehicle" button is pressed, the corresponding convenience opening functions are executed.
