Xenon headlamp unit

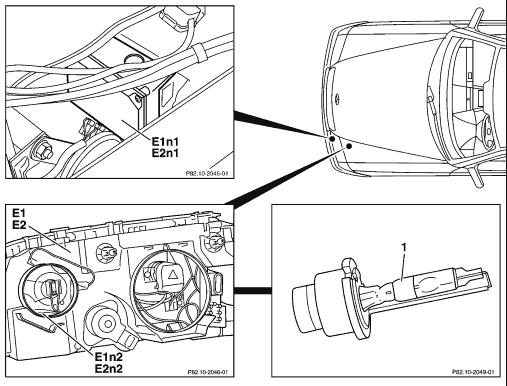

| GF82.10-P-0002-01B | Electrical system - xenon headlamps, location of components | Model 202 with code (612b)
Xenon headlamp unit |
|
| 1 Xenon lamp (D2R)
E1 Left front headlamp unit E1n1 Xenon headlamp control module E1n2 Xenon headlamp ignition module E2 Right front headlamp unit E2n1 Xenon headlamp control module E2n2 Xenon headlamp ignition module |
 | |
| P82.10-2044-06 |
