GF82.20-P-0002-01B

Interior lights (IBL) location of components

Models 202 (except 202.07/08/18) as of 1.6.97, 208 (except 208.4), 210 (except 210.081/2) as of 1.3.97

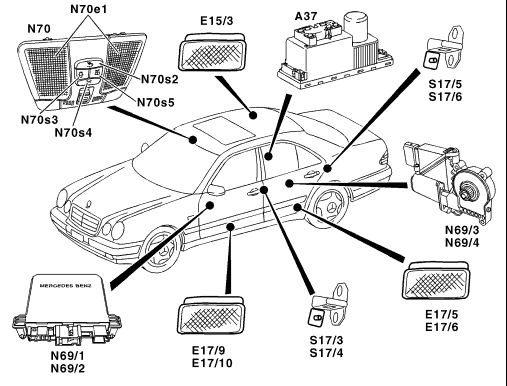

Location of components Shown on model 210 sedan
		P82.20-0276-06

A37 PSE control module (combined) E15/3 Rear dome lamp E17/5 Left rear door entrance and exit lamp E17/6 Right rear door entrance and exit lamp E17/9 Driver entry/exit lamp E17/10 Front passenger entry/exit lamp

N69/1 Driver front door control module N69/2 Driver-side front door control module N69/3 Rear left door control module N69/4 Rear passenger-side door control module N70 Overhead control panel control module Dome lamp with delay/front reading lamp

N70s2 Rear dome lamp switch N70s3 Door contact On and Off switch N70s4 Interior lamp On and Off switch N70s5 Reading lamps switch S17/3 Left front door contact switch S17/4 Right front door contact switch S17/5 Left rear door switch S17/6 Right rear door contact switch
