M5/3 Rear window washer pump
M6/4 Rear window wiper motor
S6/1 Cockpit switch group
S6/1s4 Rear wiper switch
1 Washing water line
2 Washing water reservoir
3 Nozzle
| GF82.30-P-2000E | Rear window washer, function | 13.2.96 |
| |||

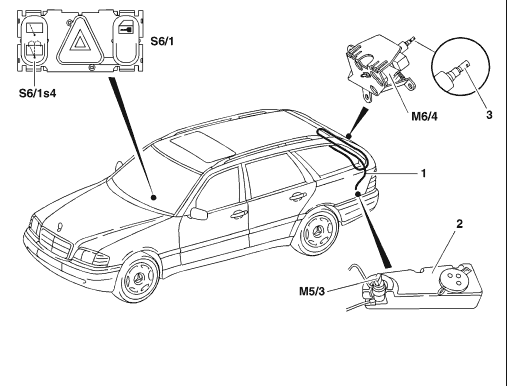

| Location of components
M5/3 Rear window washer pump M6/4 Rear window wiper motor S6/1 Cockpit switch group S6/1s4 Rear wiper switch 1 Washing water line 2 Washing water reservoir 3 Nozzle |
| |
| P82.30-0233-06 |
| The rear window wiper switch (S6/1s4) and the electronic circuitry for the interval function is located in the cockpit switch group (S6/1). The rear window wiper switch (S6/1s4) provides the interval wiping and washing functions. The nozzle (3) is located in the shaft for the rear window wiper motor (M6/4). The rear window wiper switch (S6/1s4) controls the rear window wiper motor relay (M6/4k1). The rear window wiper motor relay (M6/4k1) switches the wiper motor. |
The rear window wiper motor (M6/4) runs and the rear window washer pump (M5/3) is started simultaneously as long as the rear window wiper switch (S6/1s4) is actuated for the wipe/wash function. When the rear window wiper switch (S6/1s4) is released the rear window washer pump (M5/3) switches off and the wiper completes one more wiping stroke. |
 |
Rear window washer pump | GF82.35-P-4106E | |
| |
Rear window wiper motor | GF82.30-P-4001E | |
| |
Rear window wiper switch | GF82.30-P-4002E |
