GF82.70-P-0003-01E

Telephone (GSM), location of components

Model 202 as of 1.6.98 up to 31.5.00 with codes 316/317

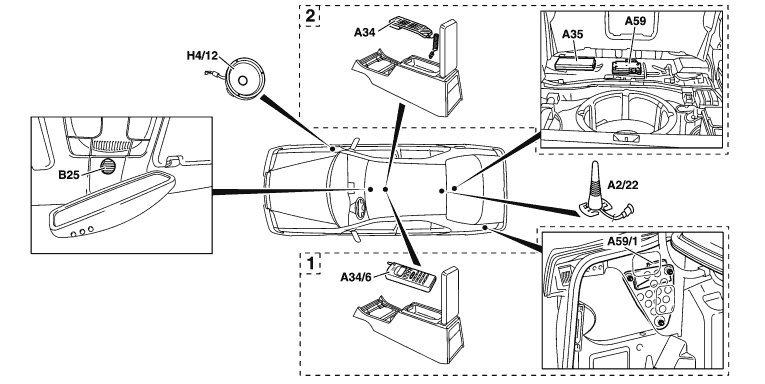

P82.70-3155-09

Sedan 1 Code 317 (cellular phone in arm rest) 2 Code 316 (fixed installation in arm rest) A2/22 Roof antenna

A34 Cellular telephone handset A34/6 Portable CTEL A35 CTEL transmitter / receiver unit A59 Fixed installation cellular telephone D2B interface A59/1 Portable cellular telephone D2B interface

B25 Handsfree system microphone H4/12 HFS speaker

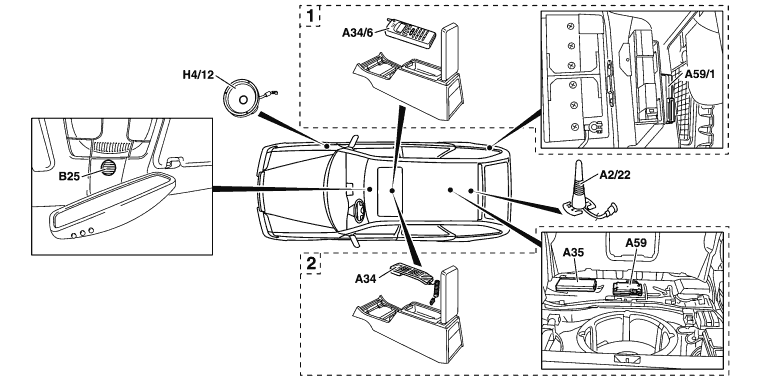

P82.70-3154-09

T-model 1 Code 317 (cellular phone in arm rest) 2 Code 316 (fixed installation in arm rest)

A2/22 Roof antenna A34 Cellular telephone handset A34/6 Portable CTEL A35 CTEL transmitter / receiver unit

A59 Fixed installation cellular telephone D2B interface A59/1 Portable cellular telephone D2B interface B25 Handsfree system microphone H4/12 HFS speaker
