MODEL   202

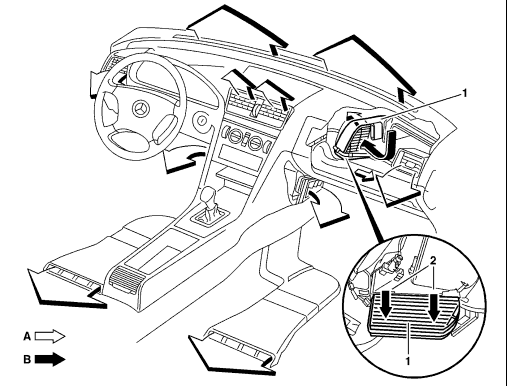

A Air flowing into vehicle passenger compartment B Fresh air (unfiltered)
		P83.10-2001-06

Function The ventilation provides for keeping the windows from fogging up oxygen supply for the vehicle passengers rapidly achieving uniform and pleasant temperatures in the passenger compartment. The blower (A32m1) supports ventilation during normal operation when the vehicle is standing still or for increasing the air flow.

Fresh air (A) is sucked into the heater housing through the air inlet and the fresh air flap. Depending on the settings on the pushbutton control unit, air (B) flows through the air ducts to the air outlets into the passenger compartment. The air flows through air slits below the rear shelf into the trunk and out of the vehicle through the rear vents. In the recirculated air mode air is sucked out of the vehicle passenger compartment through the recirculated air flap by the blower and flows into the heater housing.

	Air intake, location/function		GF83.10-P-2138E
	Blower, location/purpose/design/function		GF83.10-P-2102A
	Blower control, location/purpose/function	Model 202 up to 08/95 with codes 580 and 581a Model 202 as of 09/95	GF83.10-P-2141A
	Dust filter, location/purpose/function	Model 202 up to 08/95 with codes 305a, 450, 580 and 581a Model 202 as of 09/95	GF83.10-P-2142E
	Combination filter, location/purpose/design/function	Model 202 as of 09/97 with codes 580 and 581a	GF83.10-P-2128E
	Rear vent, location/purpose/function		GF83.10-P-2143E
	Front footwell air outlet, location/purpose/function		GF83.10-P-2145E
	Rear footwell air outlet, location/purpose/function		GF83.10-P-2146E
	Fresh air/recirculated air flap, location/purpose/design/function	Model 202 up to 08/95 with codes 305a, 450, 580 and 581a Model 202 as of 09/95	GF83.20-P-2104A
	Recirculated air button, location/purpose/function	Model 202 up to 08/95 with code 580	GF83.40-P-2145E
		Model 202 up to 08/95 with codes 305a, 450 and 581a Model 202 as of 09/95	GF83.40-P-2145A
