ENGINE   111.921 /942 as of 1.9.98,     111.943 /944 /946 /947 /973 with CODE (423a) 5-speed automatic transmission (new-generation) ENGINE   111.945     202.020 /080 as of 1.9.98 with CODE (423a) 5-speed automatic transmission (new-generation) ENGINE   111.974     with CODE (423a) 5-speed automatic transmission (new-generation)     with CODE (494a) USA version     with CODE (807) Model year 1997     with CODE (808) Model year 1998 ENGINE   111.975 as of 1.8.96 with CODE (423a) 5-speed automatic transmission (new-generation) ENGINE   112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975 with CODE (423a) 5-speed automatic transmission (new-generation) ENGINE   113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969 with CODE (423a) 5-speed automatic transmission (new-generation)

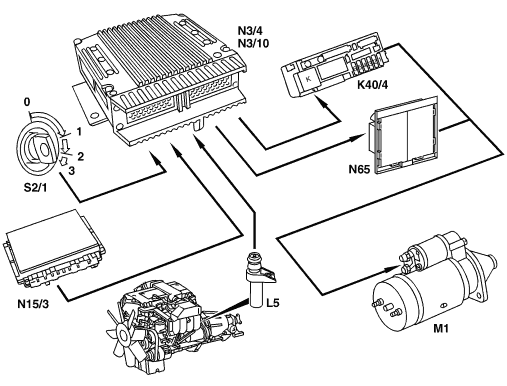

Shown on Engine 111 K40/4 Fuse and relay module, model 202, 208, 210 (starter relay integrated) L5 Crankshaft position sensor M1 Starter (circuit 50) N3/4 HFM-SFI [HFM] control unit N3/10 ME-SFI control unit (shown) N15/3 ETC control unit N65 Cycling module, model 170 (starter relay integrated) S2/1 Ignition/starter switch
		P07.61-0387-06

Task After engine start speed is reached, interrupt the circuit (circuit 50) M1to the solenoid switch of the starter.

Design The solenoid switch of the starter is operated not through the ignition/start switch S2/1, but in drive position P or N through the starter relay, by the engine control unit. The voltage for the starter relay (coil) is supplied through circuit 87. The starter relay is actuated by the engine control unit through GND.

Function When the ignition/start switch is operated in the start position, the engine control unit activates an automatic start control. Once the engine start speed of 400 to 700 rpm is reached, the engine control unit interrupts the ground actuation to the starter relay and thus the engine start operation.

Once the engine start operation is initiated, shutting off circuit 50 at the ignition/start switch has no effect. The starter rotates until the specified start speed is reached, or for about 5 seconds at an engine temperature of +80 °C, for a maximum of 10 seconds if the engine is cold.

Start recognition function

Engine 104, , 111, 112, 113 (via terminal 50)

GF07.13-P-3014G
