MODEL   202 as of 1.6.97,     208, 210.081 /281,     210 / (except 210.081 /281) as of 1.3.97

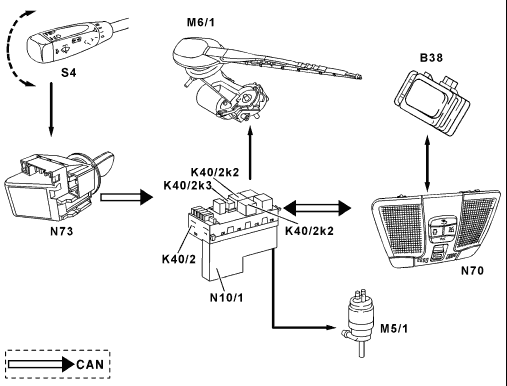

Interlinkage of components B38 Rain sensor (with code 345 only) K40/2 Driver-side fuse and relay module K40/2k1 Wiper stage 1 relay K40/2k2 Wiper stage 2 relay K40/2k3 Windshield washer relay M5/1 Windshield washer pump M6/1 Wiper motor N10/1 Driver-side signal acquisition and actuation module (SAM) N73 Electronic ignition switch (EIS) control module S4 Combination switch
		P82.30-0309-06

Prerequisite for all windshield wiper functions: Circuit "15R ON" Function The windshield wiper system is controlled with the combination switch (S4). The following functions can be selected by turning the switch: Wiping with low speed (stage 1) or high speed (stage 2). Intermittent wiping, with rain sensor (code 345) installed

with automatic interval control. When the switch is pressed in the direction of the steering column: Press to pressure point (wipe once): Wiping without washing. Pressing beyond pressure point: Front window is washed with water. Model 202: When the headlamps are switched on the headlamp cleaning system (HCS) is also actuated.

GF82.30-P-0004A

Function of rear window wiper system

3.2.97

MODEL   202.07 /08 /18 as of 1.6.97

Interlinkage of components A37 PSE control module (combined) K40/2 Driver-side fuse and relay module K40/2k3 Windshield washer relay M5/1 Windshield washer pump M5/3 Rear window washer pump M6/4 Rear window wiper motor N10/1 Driver-side signal acquisition and actuation module (SAM) N73 Electronic ignition switch (EIS) control module S6/1s4 Rear wiper switch
		P82.30-0337-06

Prerequisite for all rear window wiper system functions: Circuit "15R ON".

The rear window wipe/wash functions are actuated with the rear wiper switch (S6/1s4). The rear window wiper is also actuated when the transmission is shifted into reverse and the windshield wipers is switched on

	Washing rear window		GF82.35-P-3001A
	Rear window intermittent wiping		GF82.30-P-3001A
	Rear wiper switch		GF82.30-P-4102A
	Reverse wiping		GF82.30-P-3002A
	Location of components for	Models 202.07/08/18	GF82.30-P-0004-01A
