GF82.20-P-0002B

GF82.20-P-0002B

Interior lights (IL [IBL]) function

15.12.96

Model 202 as of 1.6.97

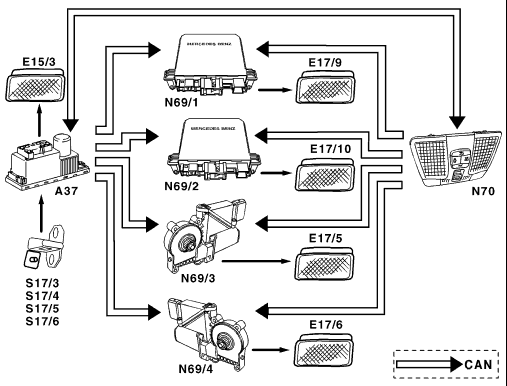

Networking of components

Shown on model 210 sedan

P82.20-0277-06

A37 PSE control module (combined)
CAN Controller area network
E15/3 Rear dome lamp
E17/5 Left rear door entrance and exit lamp E17/6 Right rear door entrance and exit lamp
E17/9 Driver entry/exit lamp
E17/10 Front passenger entry/exit lamp
N69/1 Driver-side front door control module
N69/2 Passenger-side front door control module
N69/3 Door control module rear driver side N69/4 Door control module rear passenger side
N70 Overhead control panel control module
S17/3 Left front door contact switch
S17/4 Right front door contact switch
S17/5 Left rear door switch
S17/6 Right rear door contact switch

Location of interior lights' (IBL) components Sedan GF82.20-P-0002-01B

Model 202.07/08/18 GF82.20-P-0002-01C

Switch illumination GF82.20-P-0003A

Interior lamp On and Off switch GF82.20-P-2002A

Operate reading lamp switch GF82.20-P-2003A

Actuate rear dome lamp switch GF82.20-P-2004A

Operate door contact On and Off switch Sedan GF82.20-P-2005A

Models 202.07/08/18 GF82.20-P-2005B

Switch on interior lights using central locking (CL) GF82.20-P-2006A

Switch on interior lights using anti-theft alarm system (ATA), function GF82.20-P-2007A

Luggage compartment lighting GF82.20-P-2008A

Location of interior lights' (IBL) components	Sedan	GF82.20-P-0002-01B
	Model 202.07/08/18	GF82.20-P-0002-01C
Switch illumination		GF82.20-P-0003A
Interior lamp On and Off switch		GF82.20-P-2002A
Operate reading lamp switch		GF82.20-P-2003A
Actuate rear dome lamp switch		GF82.20-P-2004A
Operate door contact On and Off switch	Sedan	GF82.20-P-2005A
	Models 202.07/08/18	GF82.20-P-2005B
Switch on interior lights using central locking (CL)		GF82.20-P-2006A
Switch on interior lights using anti-theft alarm system (ATA), function		GF82.20-P-2007A
Luggage compartment lighting		GF82.20-P-2008A

GF82.20-P-3002A

GF82.20-P-3002A Dimming interior lighting, function 15.12.96

MODEL 202 as of 1.6.97

The dome lamp with delay/front reading lamp (N70e1), the rear dome lamp (E15/3) (not on model 208.4) and the D-pillar interior lamps (E25/3, E25/4) (model 210.2 only) or trunk lamp (E18/1) (models 202.07/08/18 only) are faded on and off by the associated control module.
This means that the electrical power provided by the output stage is increased linearly over a period of 1 second when the lamp is switched on and reduced linearly for a period of 3 seconds when the lamp is switched off.

Control of switch-on time for interior lighting GF82.20-P-3001A

Control of rear dome lamp GF82.20-P-4005A

Overhead control panel control module GF82.20-P-4101A

Control of trunk lamp Models 202.07/08/18 only GF82.20-P-4006B

*Networking of components* Shown on model 210 sedan
		P82.20-0277-06

Control of switch-on time for interior lighting		GF82.20-P-3001A
Control of rear dome lamp		GF82.20-P-4005A
Overhead control panel control module		GF82.20-P-4101A
Control of trunk lamp	Models 202.07/08/18 only	GF82.20-P-4006B
